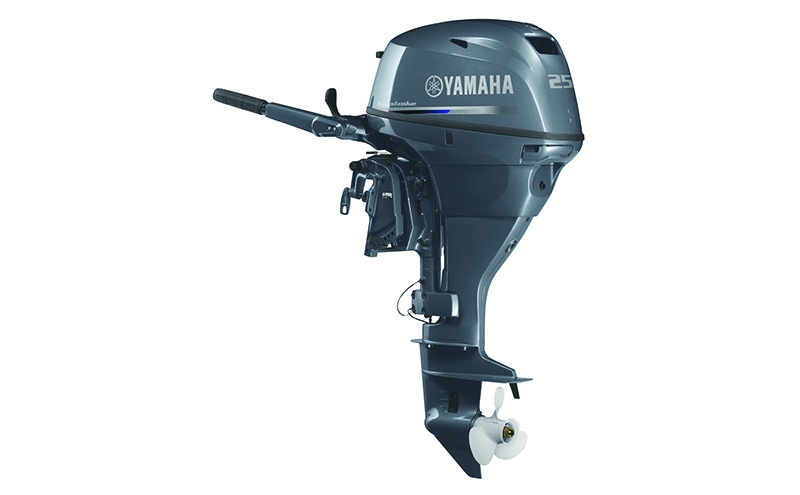

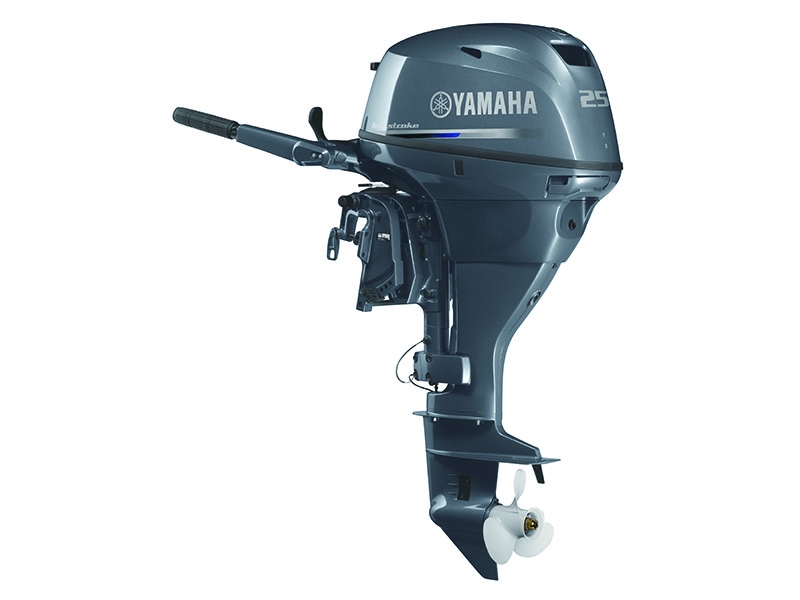

F25DMHL
Non-contractual images
Models available
F25DMHL
F25DMHL
Technical Specifications
 MOTOR |
|
| Architecture | L2 |
| Bore x Stroke (mm) | 65.0 X 75.0 |
| Displacement (cc) | 498 |
| Engine Type | In-line 4 |
| Fuel | Wet Sump |
| Fuel consumption (L/h-tr/min) | 9.2 L/h @5500 r/min |
| Full throttle operating range (tr/min) | 5000-6000 |
| Gear Ratio | |
| Ignition System | Electronic Ignition (TCI) |
| Lubrication system | Unleaded |
| Max.Prop Shaft Horsepower (Kw) | 18.4 (25 hp) |
| Maximum Power (Kw) | |
| Number of Displacement | |
| Power system | 1 carburator |
| Reduction ratio | 9.4 :1 |
| Reverse direction | |
| Start-up | Manual |
| Steering Control | |
| Trim method (positions) | |
 MORE |
|
| Alternator | 14 A |
| Control | Tiller handle |
| Propeller Rotation | Clockwise |
 DIMENSIONS |
|
| Dry weight with propeller (kg) | 85 |
| Engine Oil Capacity (L) | |
| Engine transom height (mm) | L : 550 (21.7 inch) |
| Oil capacity (L) | 1.6 L/ 1.4 L |
 WARRANTY |
|
| Manufacturer Warranty | Professional use : 6 months / Private use : 12 months |
| Retail Network | Yamaha |
